Digital Twin with Anomaly Detection

File: examples/advanced/05_digital_twin/05_digital_twin.py

---

What this example shows

The Digital Twin pattern: a virtual model of a physical system runs in parallel, fed with the same control inputs. When the physical system starts behaving differently from the model (due to wear or damage), the divergence metric triggers an alert.

---

Architecture

---

Theory

Why digital twins detect wear

At $t=0$, both plant and twin have the same dynamics. The controller drives them to the same setpoint.

At $t=3\,\text{s}$ (wear injection), the physical plant's pole shifts:

$$\text{Nominal: } G(s) = \frac{1}{s+1} \quad\longrightarrow\quad \text{Worn: } G(s) = \frac{1}{s+2}$$

The worn plant responds twice as fast but to a different magnitude. The twin, still using $G(s) = \frac{1}{s+1}$, diverges from the physical output. The divergence metric:

$$\delta(t) = |y_{\text{physical}}(t) - y_{\text{virtual}}(t)|$$

grows past the alert threshold $\delta_{\text{thr}} = 0.15$ within a few ticks of the wear event.

Virtual twin evolution

The twin evolves in the main thread via evolve(), synchronised with each bus read:

# Read physical output from bus
y_physical = monitor.read("y")[0]
u_current  = monitor.read("u")[0]

# Step the twin with the SAME u
x_virtual, y_virtual_arr = plant_nominal.evolve(
    x_virtual, np.array([u_current])
)

This guarantees that both the physical and virtual outputs are computed with the same u(t) — the only difference is the internal model.

---

Wear injection — hot swap

The plant model is swapped at runtime without stopping the controller or the bus:

if elapsed >= DRIFT_AT:
    plant_agent.stop()                              # graceful shutdown
    plant_agent = PlantAgent("worn", drifted_model, ...)
    plant_agent.start(blocking=False)               # restart with new model

The bus, controller, and virtual twin continue uninterrupted.

---

Result

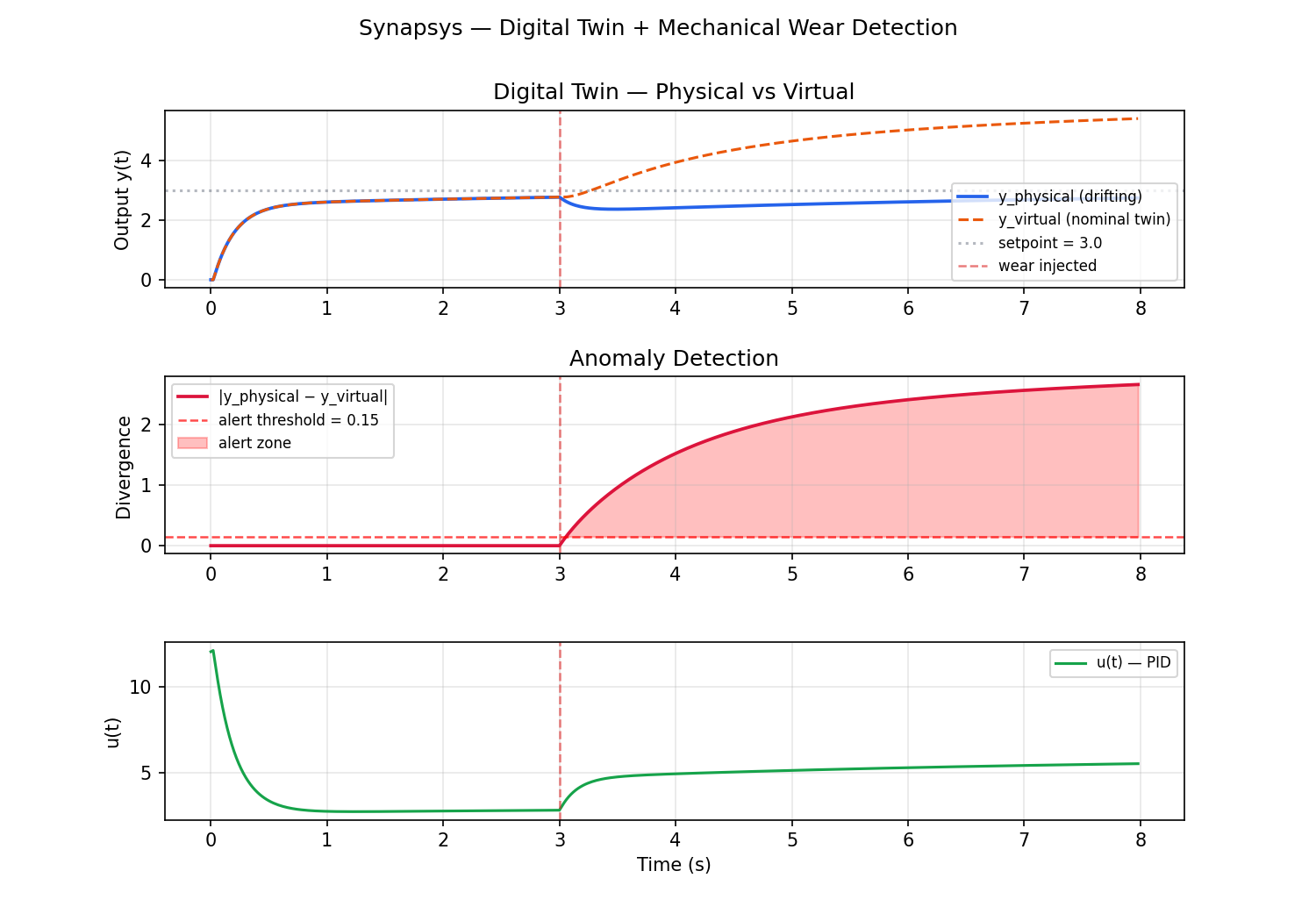

Panel 1 — Physical vs Virtual: outputs are identical until $t=3\,\text{s}$, then diverge.

Panel 2 — Anomaly Detection: the red fill shows ticks where $\delta(t) > 0.15$. The alert zone grows steadily after the wear event.

Panel 3 — Control signal: the PID compensates more aggressively post-wear because the plant dynamics have changed.

---

Real-world applications

Domain	Physical system	Wear signature
Industrial	Pump or motor	Increased damping, reduced efficiency
Aerospace	Control surface	Actuator stiffness change
Structural	Bridge or building	Natural frequency shift
Process control	Heat exchanger	Fouling increases thermal resistance

---

How to run

Single terminal — runs for 8 seconds then plots:

uv run python examples/advanced/05_digital_twin/05_digital_twin.py

Expected terminal output:

[t=3.00s] ⚠  Wear injected: plant pole drifted -1 → -2
[t=3.05s] 🔴 ALERT: divergence = 0.18 > 0.15
...
Simulation complete. N ticks with divergence > 0.15.
